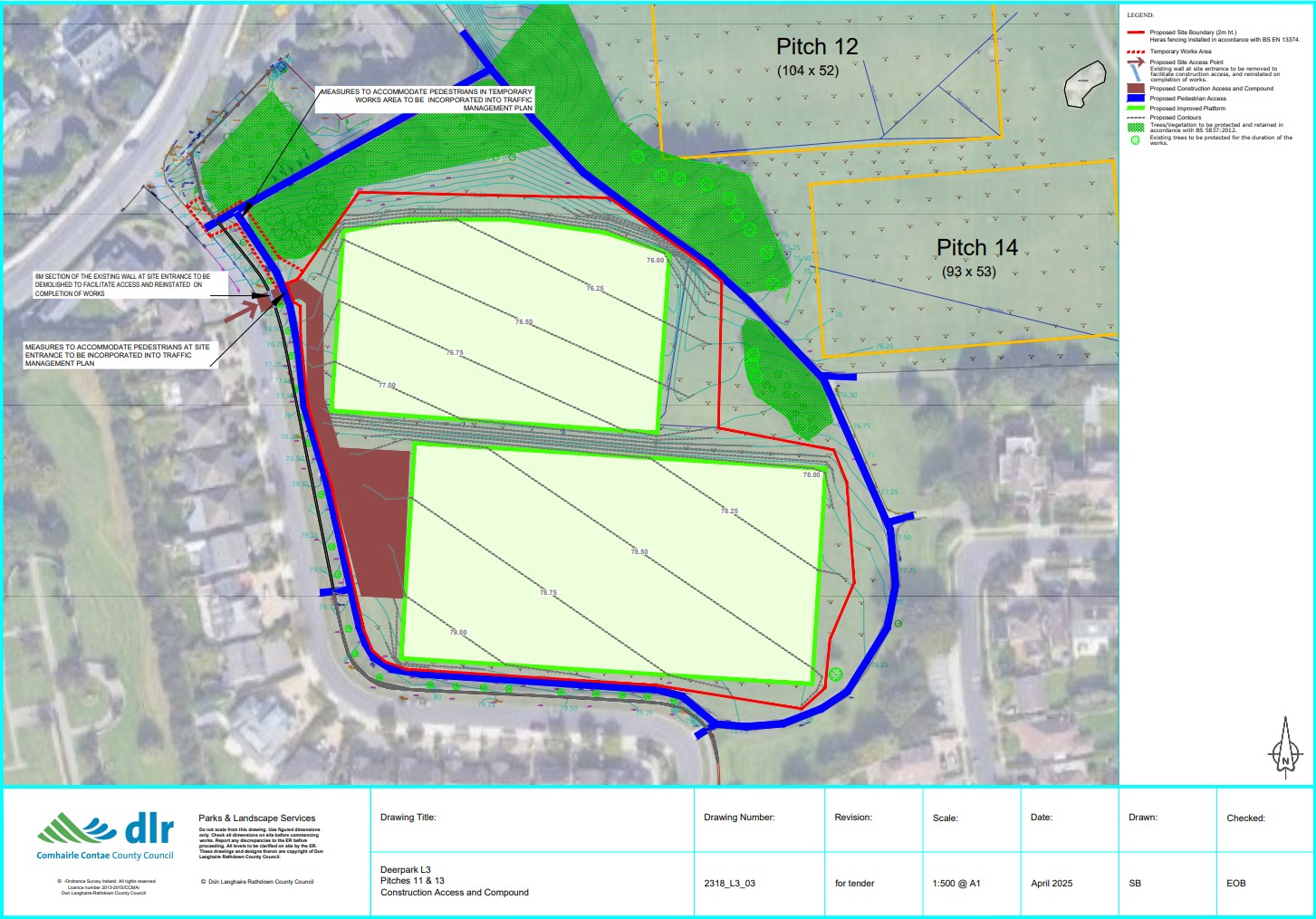

Site Set up: Construction access off Mount Anville Park Road, haul route and compound area to set up on existing grass area. Site boundary to be securely fenced. Topsoil to be stripped and stored.
Pitch Size: Change from 116x60m to 120x60m, with an additional 3m surround.
Pitch Gradient: Existing gradient crossfall of 1:83. Proposed gradient to be increased to 1:200 in the direction of play, and 1:120 across play.
Surface Water: Proposed 225mm dia. perforated collector pipes to pitch margins.
Proposed 80mm dia. lateral perforated pipes at 6m centres across entire pitch.
Proposed Sand slits: 50mm wide, 350mm deep, 1m centres, 2-5mm pebble size.
Attenuation: Proposed filter drains (1m depth) with 40% void stone, providing 281m3 of attenuation storage volume.
Outfall: Proposed connection to existing surface water network on Mount Anville Park Road. 225mm dia. UPVC pipe to the outfall manhole SO18287601.

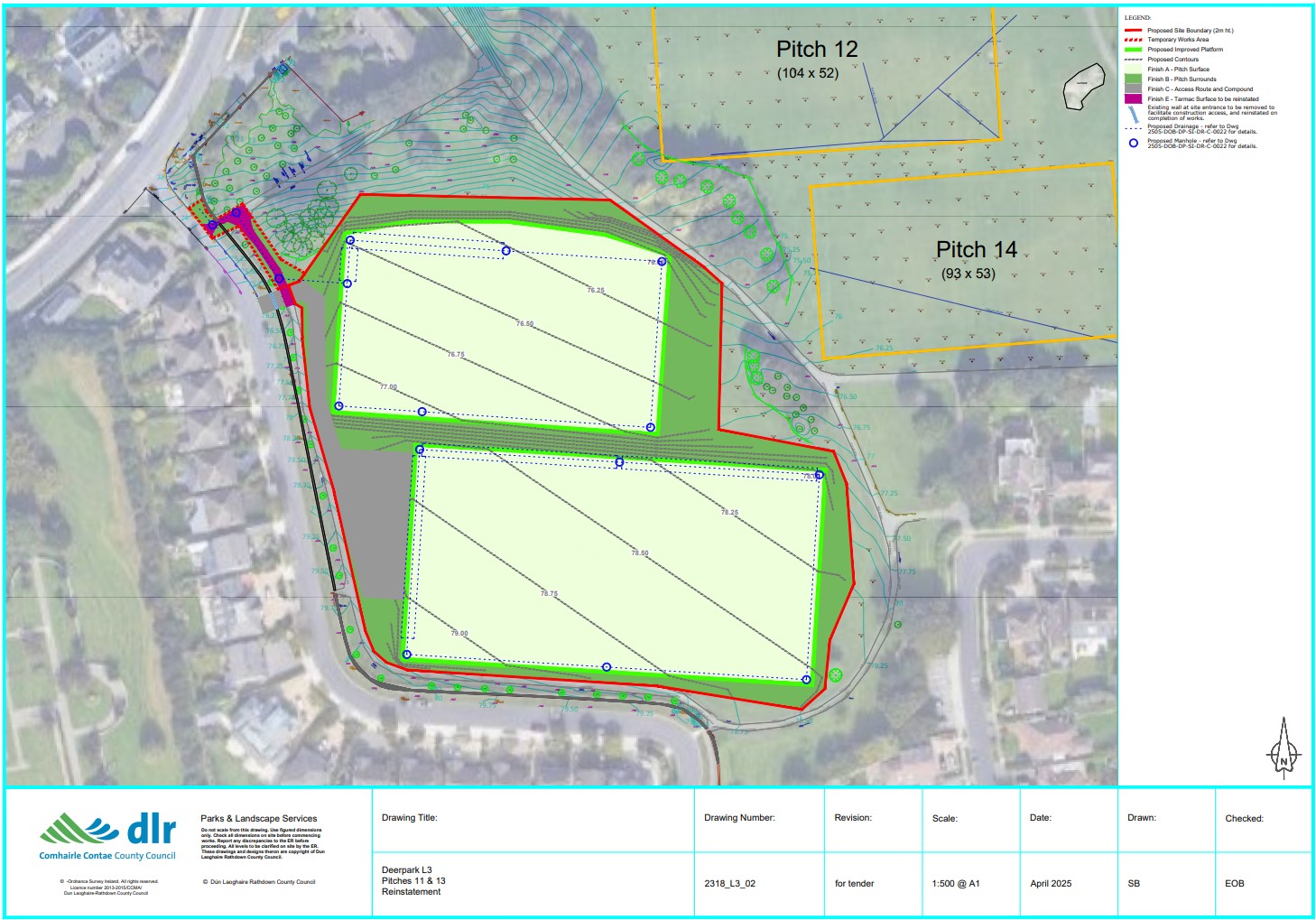

Improved Platform Finish: Topsoil to be spread and graded to agreed falls. Surface to be pre fertilised and seeded with perennial ryegrass species.
Establishment: To be top dressed with 40mm sand. First cut approximately 3 weeks after sowing. 50mm ht.
Fixtures and Fittings: Existing goal posts to be reused.
Site Set up: Construction access off Mount Anville Park Road, haul route and compound area to set up on existing grass area. Site boundary to be securely fenced. Topsoil to be stripped and stored.
Pitch Size: Change from 100x51m to 100x55m.
Pitch Gradient: Existing gradient crossfall of 1:45. Proposed gradient to be increased to 1:200 in the direction of play, and 1:75 across play, to improve drainage.
Surface Water: Proposed 225mm dia. perforated collector pipes to pitch margins.
Proposed 80mm dia. lateral perforated pipes at 6m centres across entire pitch.
Proposed Sand slits: 50mm wide, 350mm deep, 1m centres, 2-5mm pebble size.
Attenuation: Proposed filter drains (1m depth) with 40% void stone, providing 204m3 of attenuation storage volume.
Outfall: Proposed connection to existing surface water network on Mount Anville Park Road. 225mm dia. UPVC pipe to the outfall manhole SO18287601.
Improved Platform Finish: Topsoil to be spread and graded to agreed falls. Surface to be pre fertilised and seeded with perennial ryegrass species.
Establishment: To be top dressed with 40mm sand. First cut approximately 3 weeks after sowing. 50mm ht.
Fixtures and Fittings: Portable goals (no ball stop netting) to be used for the soccer pitch.
